120 Series Ball Valves  Application : Control Sampling system, Process intrument.  Feature : - Available in Multi Ports with 3-way, 4-way. - Stainless Steel and Brass construction. - Bi-direction Flow - Integral ball stem - PTFE seats - Two-piece seat fully encapsulates the ball - Minimum dead space is easily cleaned  Specification : Maximum Working Pressure: 3000psi(207bar)@70˚F(21˚C) Working Temperature Range: 50˚F to 150˚F (10˚C to 66˚C )

210 Series Ball Valves  Application : Pneumatic System, Instrumnt System.  Feature : - Compace Design with wo piece Hexagon body. - Stainless Steel and Brass construction. - Standard Butterfly handle.  Specification : Maximum Working Pressure: 1000psi(69bar)@70˚F(21˚C) Working Temperature Range: 0˚F to 450˚F (-17˚C to 232˚C )

SBVH 360 Series Ball Valves  Application : High Pressure Instrument system, hydraulic system.  Feature : - Various flow Control. - Blowout proof stem. - Fire safety design. - handle indicates the flow direction.  Specification : Maximum Working Pressure: 10000psi@70˚F(21˚C) Working Temperature Range: -22˚F to 265˚F (-30˚C to 130˚C )

DIN Type Ball Valves  Application : Hydraullic Lines.  Feature : - Stainless Steel and Carbon steel construction. - POM-Mo S2 seats. - No glands therefore no manual readjustment of seals required. - Full flow passage. - Easy operation.  Specification : Maximum Working Pressure: 7200psi(496bar)@70˚F(21˚C) Working Temperature Range: -4˚F to 210˚F (-20˚C to 100˚C )

SBVF 360 Series - High Pressure Forged Ball Valves  Application : High pressure Instrument Lines, OIL & GAS Production.  Feature : - Compact design(2way or 3way) - Handle indicates flow direction - Panel mountable - 316 Stainless steel and brass construction. - Low operating torgue - Adjustable stem seal can be maintained in-line.  Specification : Maximum Working Pressure: 6000psi(414bar)@70˚F(21˚C) Working Temperature Range: -65˚F to 450˚F(-54˚C to 232˚C) with PEEK seat -65˚F to 350˚F(-54˚C to 177˚C) with PCTFE seat

Trunnion Ball Valves  Application : Instrument Air line, GAS & CNG industry, Sampling.  Feature : - 2-way or 3-way design - Employs spring-loaded seat for high cycle - Trunnion bearings for longer cycle life - No packing to adjust - Manual or pneumatic actuation  Specification : Maximum Working Pressure: 10000psi(689bar)@100˚F(38˚C) Working Temperature Range: 0˚F(-17˚C ) to 250˚F (121˚C)

Swing Out Ball Valves  Application : Instrument Air Chemical process Oil and Gas Production  Feature : - Floating Ball design - spring-loaded seat - Blow out proof stem - Fire safety design - Anti staic - Stainless steel construction as standard - Live loaded Stem packing  Specification : Maximum Working Pressure: 3000psi(207bar)@100˚F(38˚C) Working Temperature Range: -20˚F to 450˚F (-29˚C to 232˚C)

Flanged Ball Valve  Application : Hydrauic system, Chemical, petrochemical, Oil andGas production  Feature : - Stainless Steel, Duplex, Carbon steel consruction. - Blow out proof stem - Floating & Trunnion mounted Ball type - Fire safety design - Anti static design - Designed according to ASME B16.34 and API6D - Flanged &Socket weld connection (ASME B16.5/ ASME B16.11)  Specification : Maximum Working Pressure: ANSI Class150 to Class2500 Working Temperature Range: -20˚F to 400˚F (-29˚C to 204˚C )

SAE Flanged Ball Valve  Application : Hydrauic system  Feature : - Stainless Steel and Carbon steel Consruction. - Blow out proof stem - Fire safety design - Locking device available - SAE J518 & ISO 6164 Flanged edn connection  Specification : Maximum Working Pressure: Up to 6000psi(414bar) @100˚F(38˚C ) Working Temperature Range: -4˚F to 210˚F (-20˚C to 100˚C )

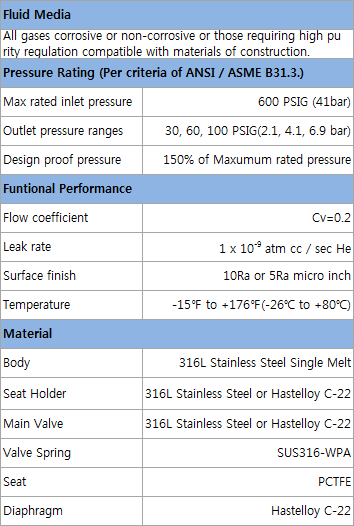

Ultra High Purity Regulators  Application : Ultra high purity gas piping system  Feature : - Metal-to-metal diaphragm seal assures high leak integrity. - Body internally surfaces electropolished and finished with 10R a or 5Ra - Adjustable outlet pressure - Every step of assembly, welding, testing and final cleaning finished in class100 Clean Rooms. - Reference specification: SEMI E49.6.  Specification :

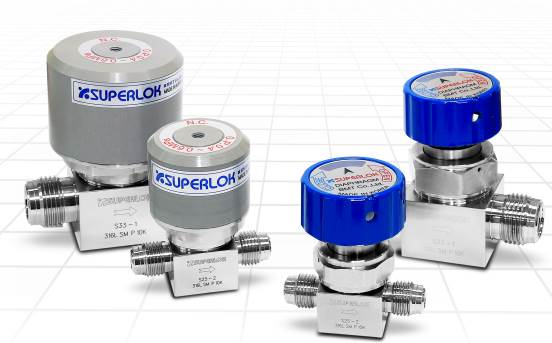

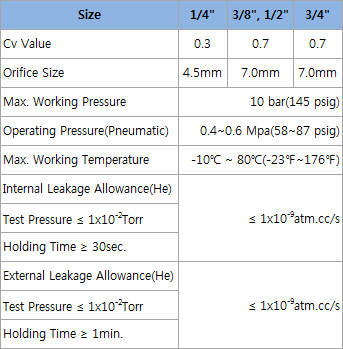

Ultra High Purity Diaphragm Valves   Application : Ultra high purity gas piping system  Feature : - It is featured that the diaphragm valve serves economical, high performance and long cycle life time. - Electropolished, D.I. water cleaned, assembled, tested and packaged in a certified clean room. - The diaphragm valve is used for shut-off isolation in gas control systems, and analyzer sampling systems.  Specification :

Key Operation Ball Valve  Application : Pneumatic System, Instrument System & isolation, General service  Feature : - Stainless Steel Construction. - Locking device - It can prevent various accident caused by inappropriate operations of unauthorized or unskilled persons in Construction, inspacting and running piping work.  Specification : Maximum Working Pressure: 1000psi(69bar) @70˚F(21˚C ) Working Temperature Range: 0˚F to 450˚F (-17˚C to 232˚C )

Plug Valve  Application : Instrument Air Lines, Refinery pilot plant  Feature : - 316 stainless steel and Brass construcion. - Straight-though flow path - One-piece body - Replaceable plug assembly - Easy to clean and maintain - Viton O-Ring seat and seal  Specification : Maximum Working Pressure: 3000psi(207bar)@100˚F(38˚C) Working Temperature Range: -10˚F to 400˚F (-23˚C to 204˚C )

Rising Plug Valve  Application : Line Which contain small solid impurities Instrument lines which contain viscous fluids or slurries System which require flow regulation and full flow capabilities  Feature : - Non-rotating stem tip - Straight-through orifice for maximum flow - Stem dust seal protects threads from external contamination - Replaceable seals, seat & stem tip - Pannel mounting option - Gauge port option  Specification : Maximum Working Pressure : 6000psi(414bar) @ 100℉(37℃) Working Temperature Rage : -10℉ to 400℉ (-23℃ to 204℃)

High Pressure Needle Valves  Application : High pressure service, Instrument isolation  Feature : - Stainless steel construcion as standard - PTFE packing standard, optional graphite - Externally adjustable - Variety of end connecions - Backseat stem design prevents stem blowout  Specification : Maximum Working Pressure: Up to 10000˚F(689˚C) @100˚F(38˚C) Working Temperature Range: -65˚F to 450˚F (-54˚C to 232˚C ) with PTFE packing Up to 1200˚F(649˚C) with Graphite packing

Needle Valves  Application : Instrument isolation, General service, Test valve.  Feature : - Straight and angle patterns - Stainless Steel and Brass construction. - Panel Mountable - Metal seat or soft seat - Variety of connections  Specification : Maximum Working Pressure: 5000psi(345bar)@100˚F(38˚C) Working Temperature Range: -65˚F to 450˚F (-54˚C to 232˚C )

Union Bonnet Needle Valves  Application : High emperature and pressure Radioacive Service, Condensates  Feature : - Panel moutable - Non-rotating stem tips - Variety of stem tips - Variety of end connections - Straight and angle patterns  Specification : Maximum Working Pressure: 6000psi(414bar)@100˚F(38˚C) Working Temperature Range: -65˚F to 450˚F (-54˚C to 232˚C ) with PTFE packing Up to 1200˚F(649˚C) with Graphite packing

Intergral Bonnet Bar Stock Needle Valves  Application : Instrumen isolation, General service, Test valves  Feature : - Straight and angle patterns - Stainles Steel construction - Panel Mountable - Metal seat or soft seat - Variety of end connections  Specification : Maximum Working Pressure: 6000˚F(414˚C) @100˚F(38˚C) Working Temperature Range: -65˚F to 450˚F (-54˚C to 232˚C )

Check Valve  Application : Prevent reversed flow, High pressure characteristics.  Feature : - In-Line pattern - Adjustable and fixed Cracking pressure - Stainless and Brass Construction. - Poppet design  Specification : Maximum Working Pressure: up to 6000psi(414bar)@100˚F(38˚C) Cracking Working pressure: 1/3 psi(0.03 bar) to 100 psi(6.9 bar) Working Temperature Range: -10˚F to 375˚F (-23˚C to 204˚C )

High Pressure Check Valves  Application : High pressure Check Valve  Feature : - In-Line pattern - Adjustable and fixed Cracking pressure - Stainless and Brass Construction. - Poppet design  Specification : Maximum Working Pressure: up to 6000psi(414bar)@100˚F(38˚C) Cracking Working pressure: 1/3 psi(0.03 bar) to 100 psi(6.9 bar) Working Temperature Range: -10˚F to 375˚F (-23˚C to 204˚C )

Manifolds Valves  Application : Pressure & Differential Pressure Instrumentation.  Feature : - 2valves, 3valves, 5valves instrument manifolds - Stainless steel construction - MSS Flange connections available -Graphite packing available. - packing below threads to prevnt lubricant washout  Specification : Maximum Working Pressure: 6000psi(414bar)@100˚F(38˚C) Working Temperature Range: 65˚F to 450˚F (-54˚C to 232˚C ) with PTFE packing Up to 1200˚F(649˚C ) with Graphite packing

Gauage Valve  Application : Pressure & Differential Pressure Instrumentation.  Feature : - 2valves, 3valves, 5valves instrument manifolds - Stainless steel construction - MSS Flange connections available -Graphite packing available. - packing below threads to prevnt lubricant washout  Specification : Maximum Working Pressure: 6000psi(414bar)@100˚F(38˚C) Working Temperature Range: 65˚F to 450˚F (-54˚C to 232˚C ) with PTFE packing Up to 1200˚F(649˚C ) with Graphite packing

Relife Valve  Application : Prevent over pressure to protect  Feature : - Angle pattern - Stainless steel construction - Pressure setting are externaly adjustable while the valv is in operation - Lock wire feture secures agiven presure setting  Specification : Maximum Working Pressure: SRVL:300psi(21bar)@100˚F(38˚C) SRVH:6000psi(414bar)@100˚F(38˚C) Working Temperature Range: -10˚F to 400˚F (-23˚C to 204˚C ) Opening Pressure: SRVL:10psi(0.69bar) to 250 psi(17.2bar) SRVH:225ps

Toggle Valve  Application : Instrument line, Pneumatic system  Feature : - Compact design - Open and closes quickly - Straight and angle patterns - Panel mountable  Specification : Maximum Working Pressure: 300psi(20.7bar)@100˚F(38˚C) Working Temperature Range: -20˚F to 200˚F (-29˚C to 93˚C ) with PTFE stem tip

Double Block & Bleed Valves  Application : Process piping isolation points, Direct mount to instruments, Vents and drains.  Feature : - Process interface in one compact ball/ needle/ ball valve assembly - 2,3-piece bolted Body or 1-piece forged Body construction. - Flange connections in accordance with ASME B16.5 - Blowout proof stem - Fire sagety designed  Specification : Maximum Working Pressure: Class 1150 to Class 2500 Working Temperature Range: -58˚F to 400˚F (-50˚C to 204˚C ) for stainless steel and duples valve assemblies -50˚F to 400˚F (-46˚C to 204˚C ) for carbon steel valve assemblies

Bleed & Purge Valves  Application : Venting & purging of Instrument system, hydraulic & Pneumatic system  Feature : - Stainless Steel and Carbon steel construction - Compact for convenient installation - male NPT and SAE end connections - Size range from 1/8 in ~ 1/2 in tubing and piping systems  Specification : Maximum Working Pressure: Up to 10000psi(689bar)@100˚F (38˚C) Working Temperature Range: -65˚F to 850˚F (-54˚C to454˚C ) with stainless steel, from -20˚F to 450˚F (-29˚C to 232˚C ) with carbon steel

Excess Flow Valve  Application : Fuel system, Gas system, Hydraulic & Pneumatic system  Feature : - Stainless Steel Construction - Safety system shutoff device - Variable connection size  Specification : Maximum Working Pressure: Up to 6000psi(414bar)@100˚F (38˚C) Working Temperature Range: Up to 400˚F (204˚C)
